Early conversations with roadway, utility, and temporary traffic-control workers pointed to a coordination problem. Teams need to keep traffic predictable while managing short staffing, glare, changing geometry, and a work zone whose two ends may not share a line of sight.

That reframed the brief. Kaleido should help a crew supervise traffic from a safer position, retain human oversight, and make the shared condition of the zone legible. It should not claim to replace trained flaggers.

The category already includes portable signals and automated flagger assistance devices. Kaleido does not need an unfamiliar visual language to be useful. Its contribution is a protocol that makes the two ends of a bounded, supervised work zone agree before traffic moves.

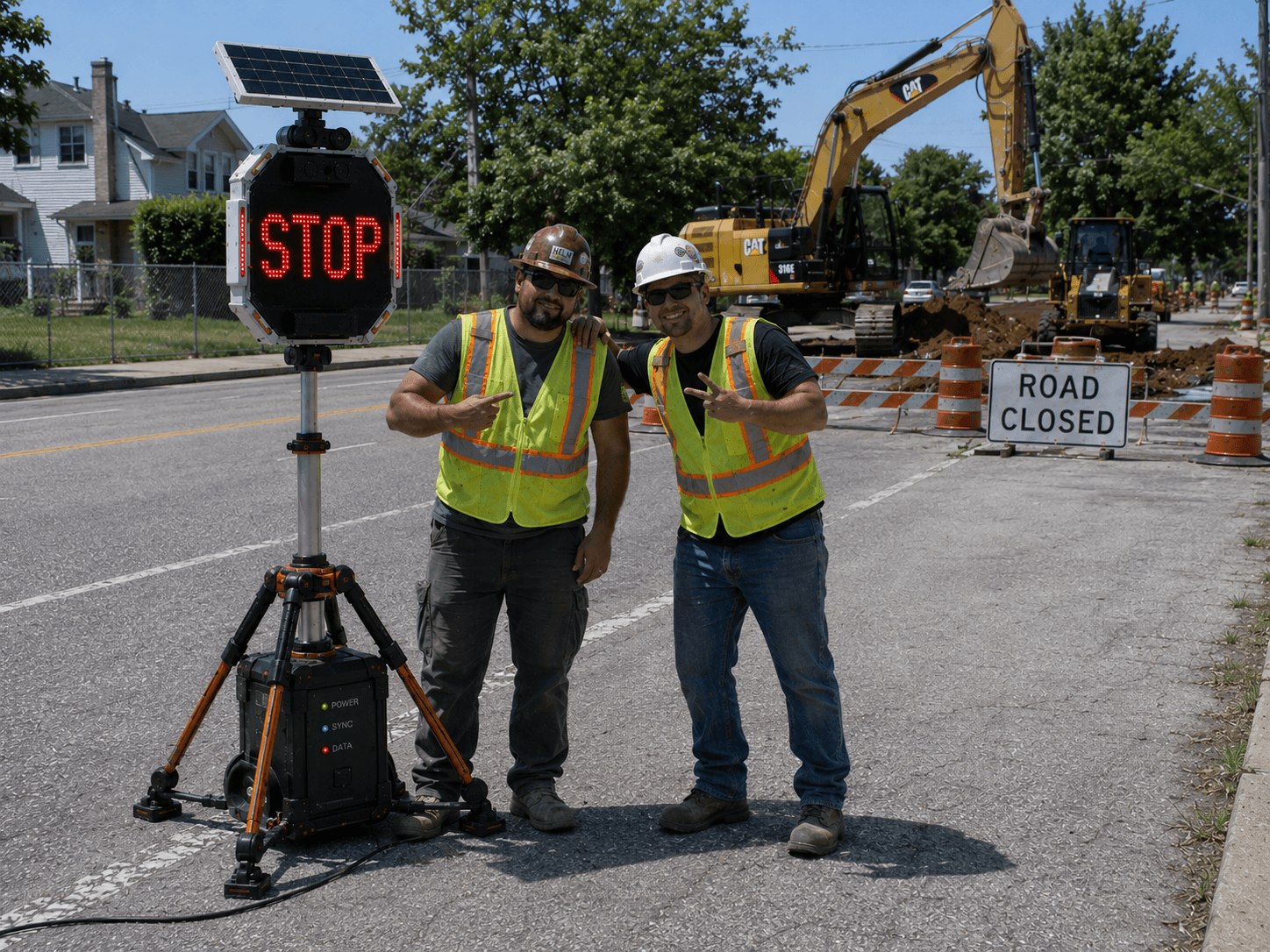

Those requirements kept the industrial design honest: the system has to be legible to drivers, serviceable by a crew, stable at the roadside, and compact enough to travel as part of temporary work-zone equipment.

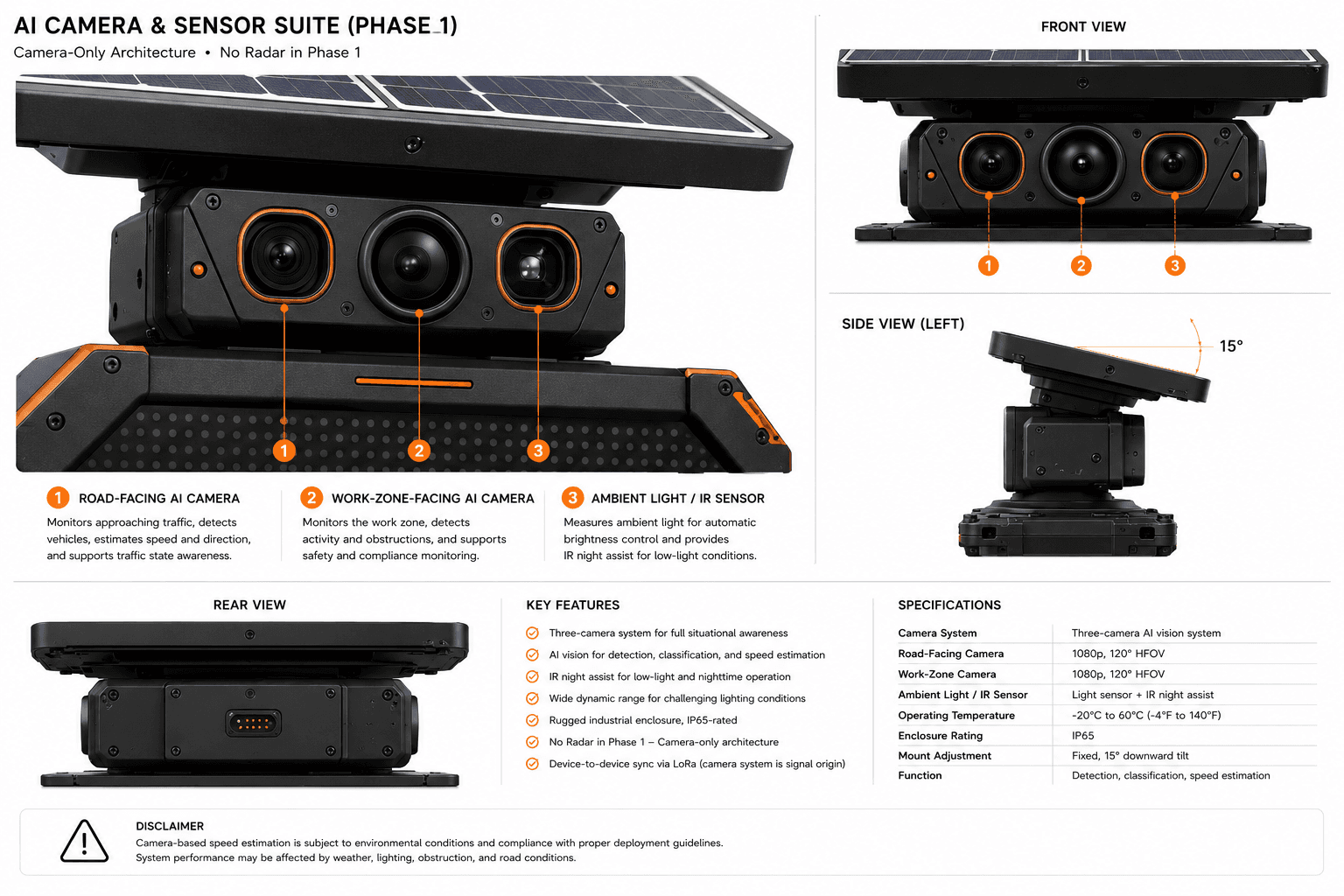

Each Kaleido unit performs local optical sensing and produces a constrained clearance classification. The product separates perception from authority: edge AI can suggest CLEAR, OCCUPIED, UNCERTAIN, or FAULT, but it cannot release traffic by itself.

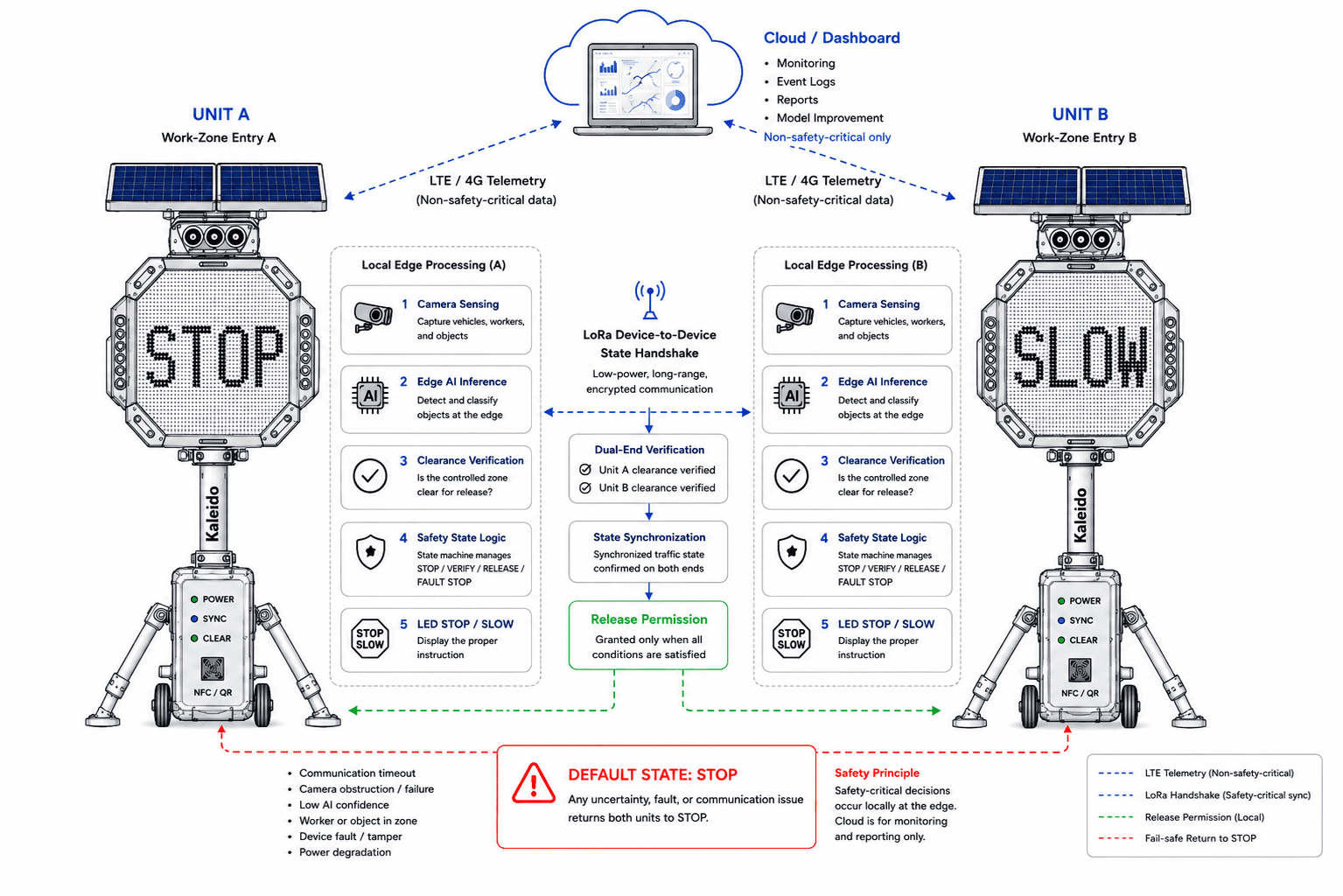

A low-power, device-to-device LoRa handshake carries state, confidence, direction, heartbeat, and safety status between the two endpoints. The cloud can support monitoring, event logs, and reporting, but safety-critical decisions are held locally.

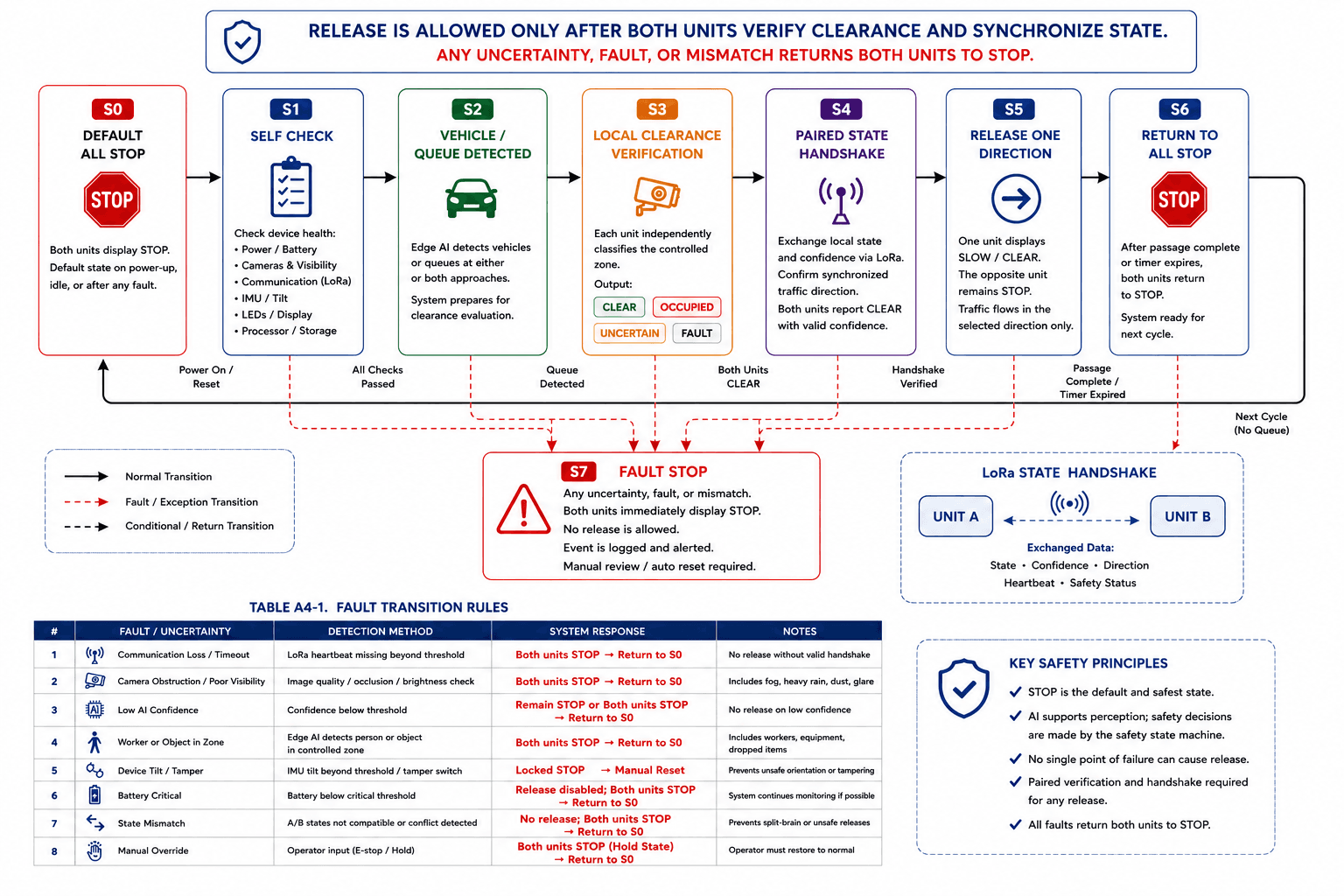

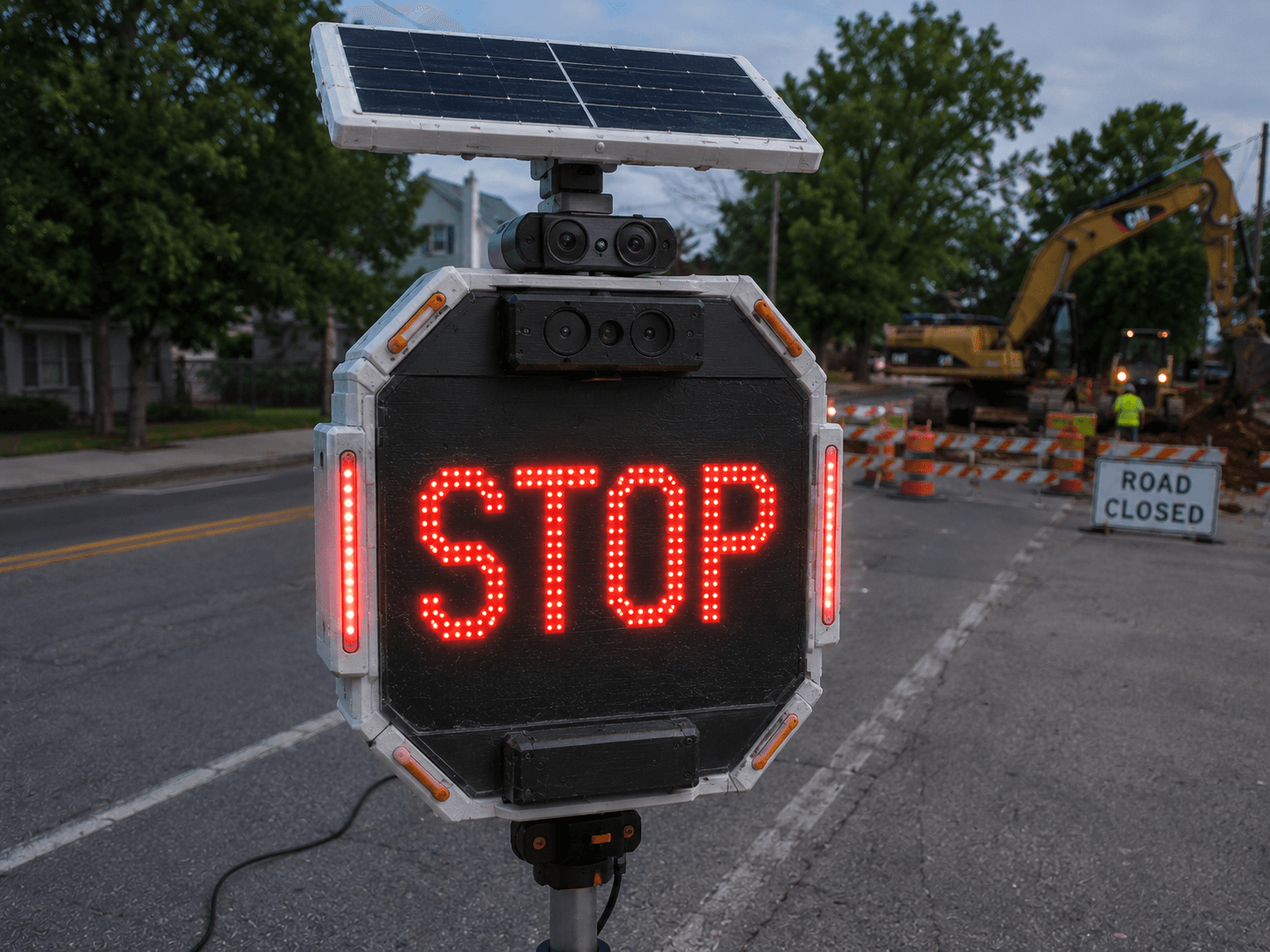

STOP is both the startup state and the fallback state. Before a direction can be released, both units must pass health checks, classify the zone as CLEAR, exchange compatible state, and agree on direction. One unit shows SLOW or CLEAR while the other remains STOP.

Communication loss, camera obstruction, low confidence, a person or object in the zone, device tilt, critical battery, state mismatch, or a manual override all return both units to STOP. That is a design decision with physical, software, and operator consequences.

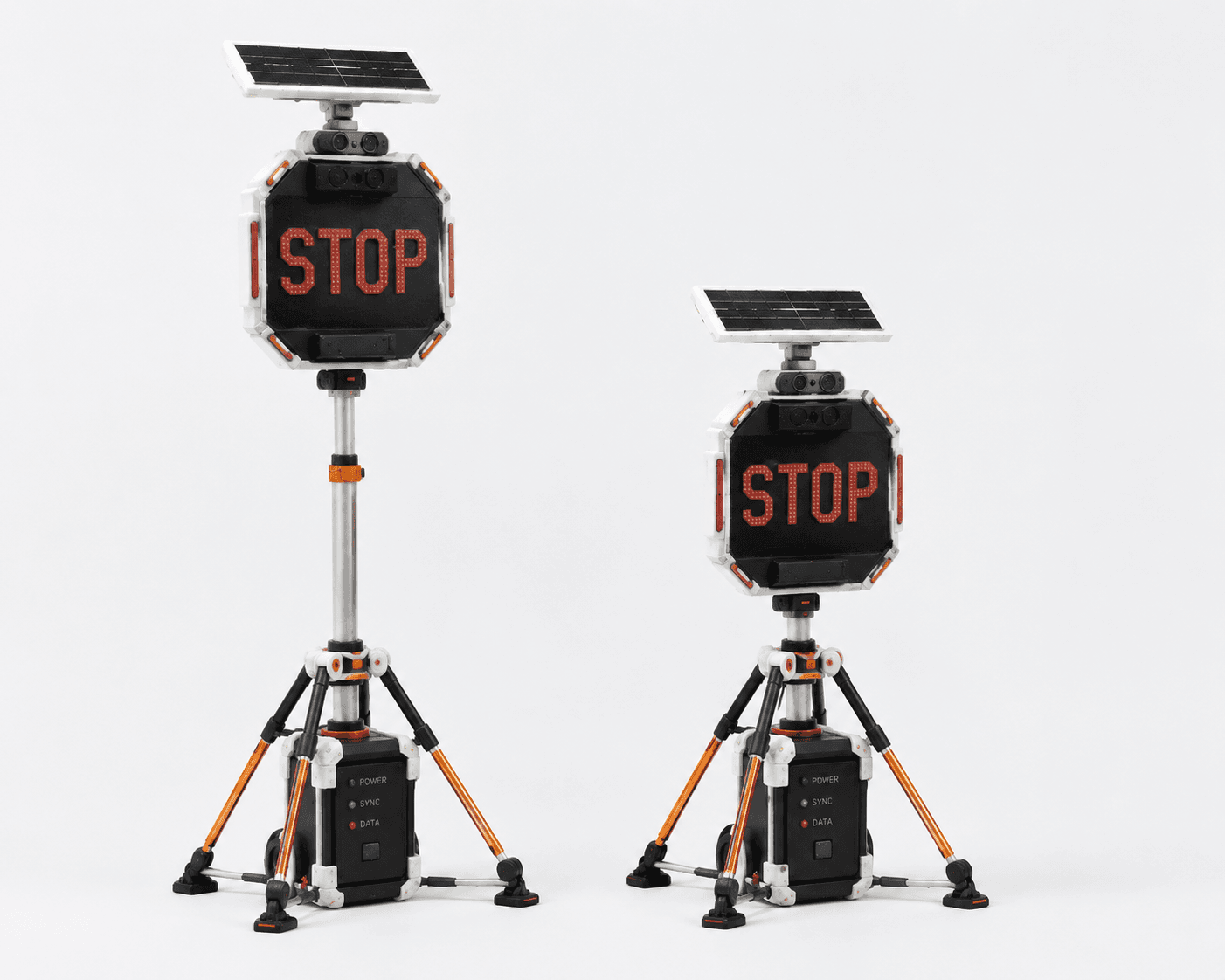

The product combines a double-sided display, elevated sensing, solar-assisted power, an adjustable mast, a sealed control enclosure, stabilization legs, and transport wheels. I treated these as a physical sequence rather than an inventory of features: arrive, unfold, stabilize, align, pair, supervise, and pack down.

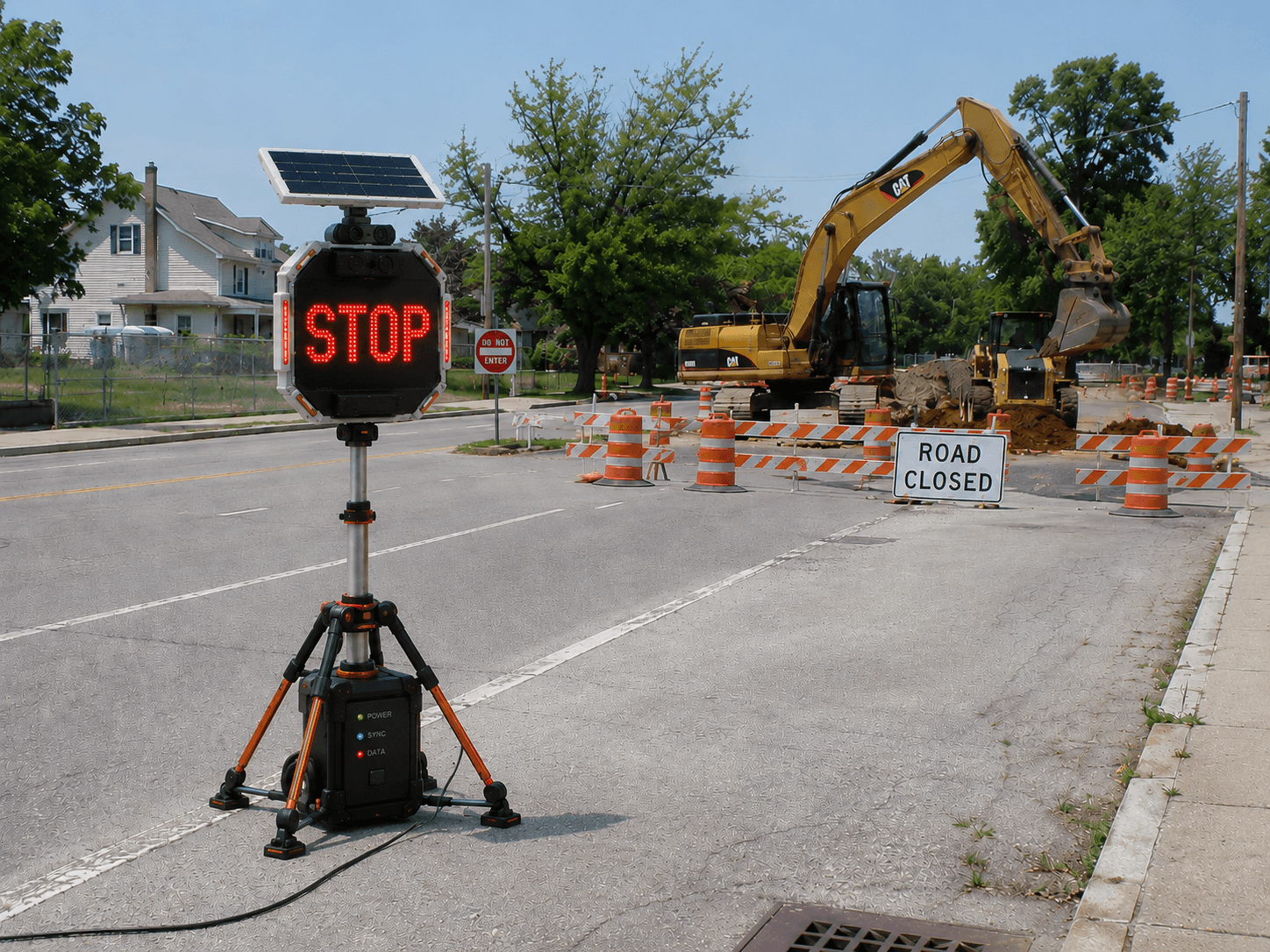

Early physical studies made the trade-offs visible. The display needs road-facing authority; the camera needs a clear view; controls need protected access; and the base must remain stable while giving one person a credible transport path.

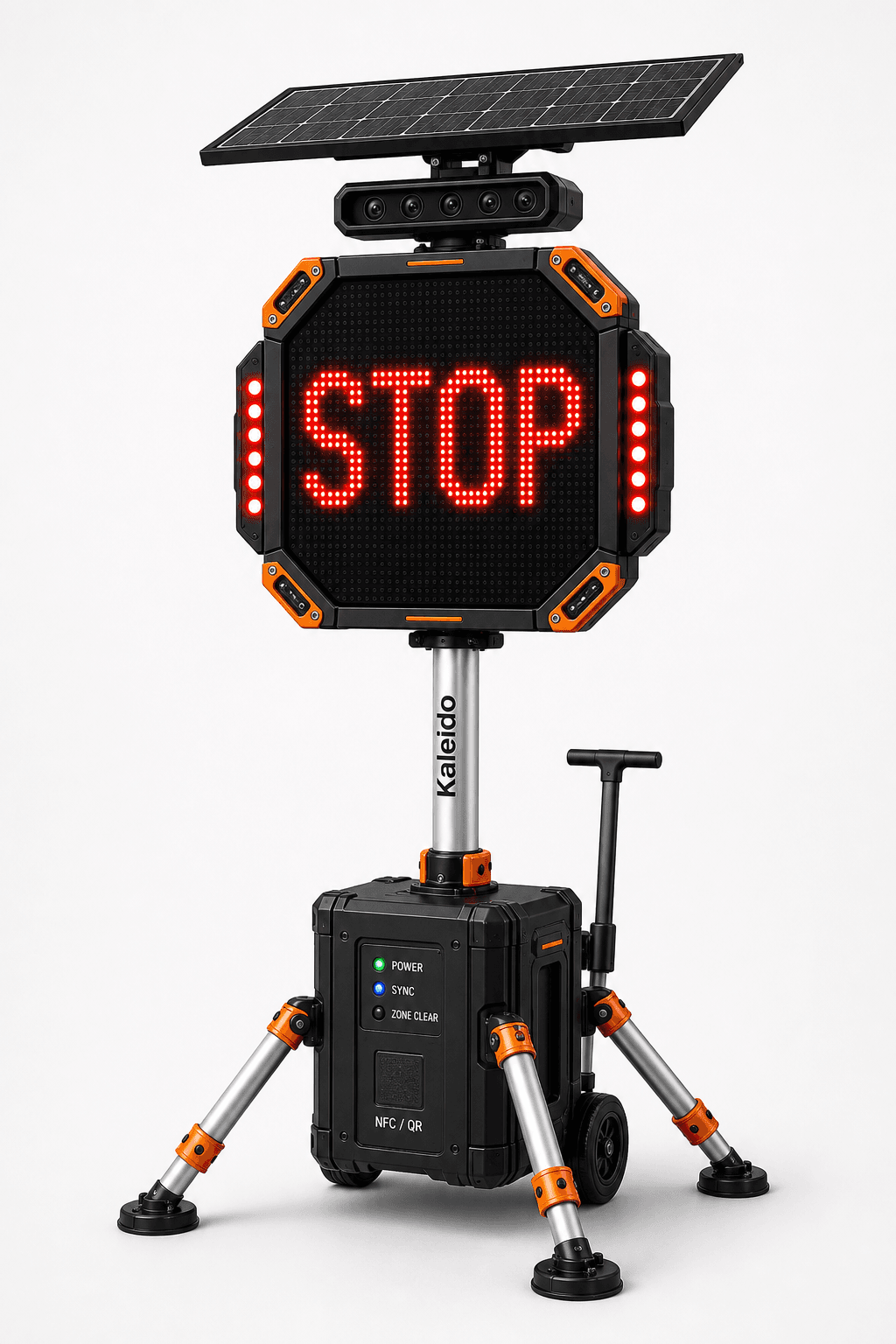

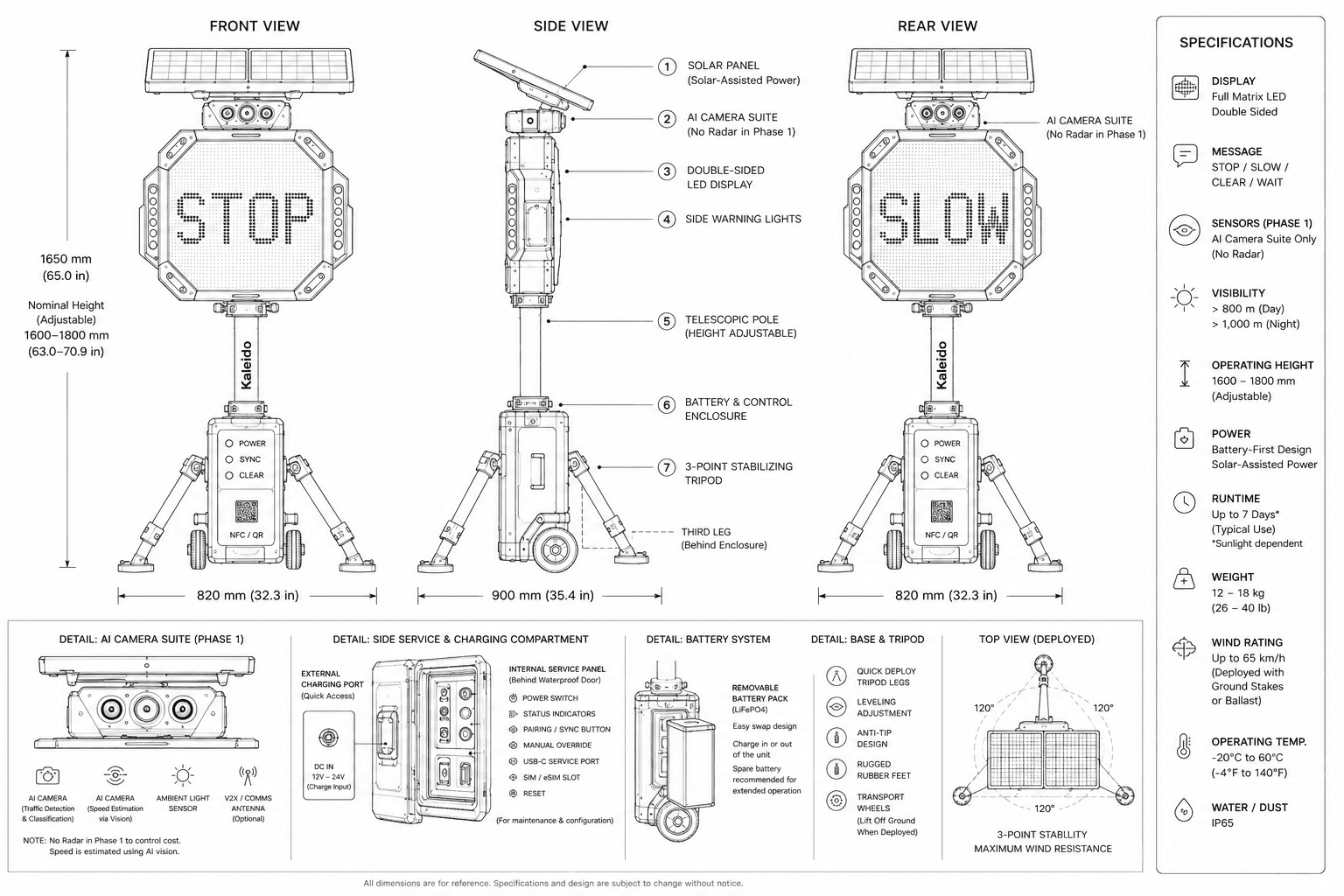

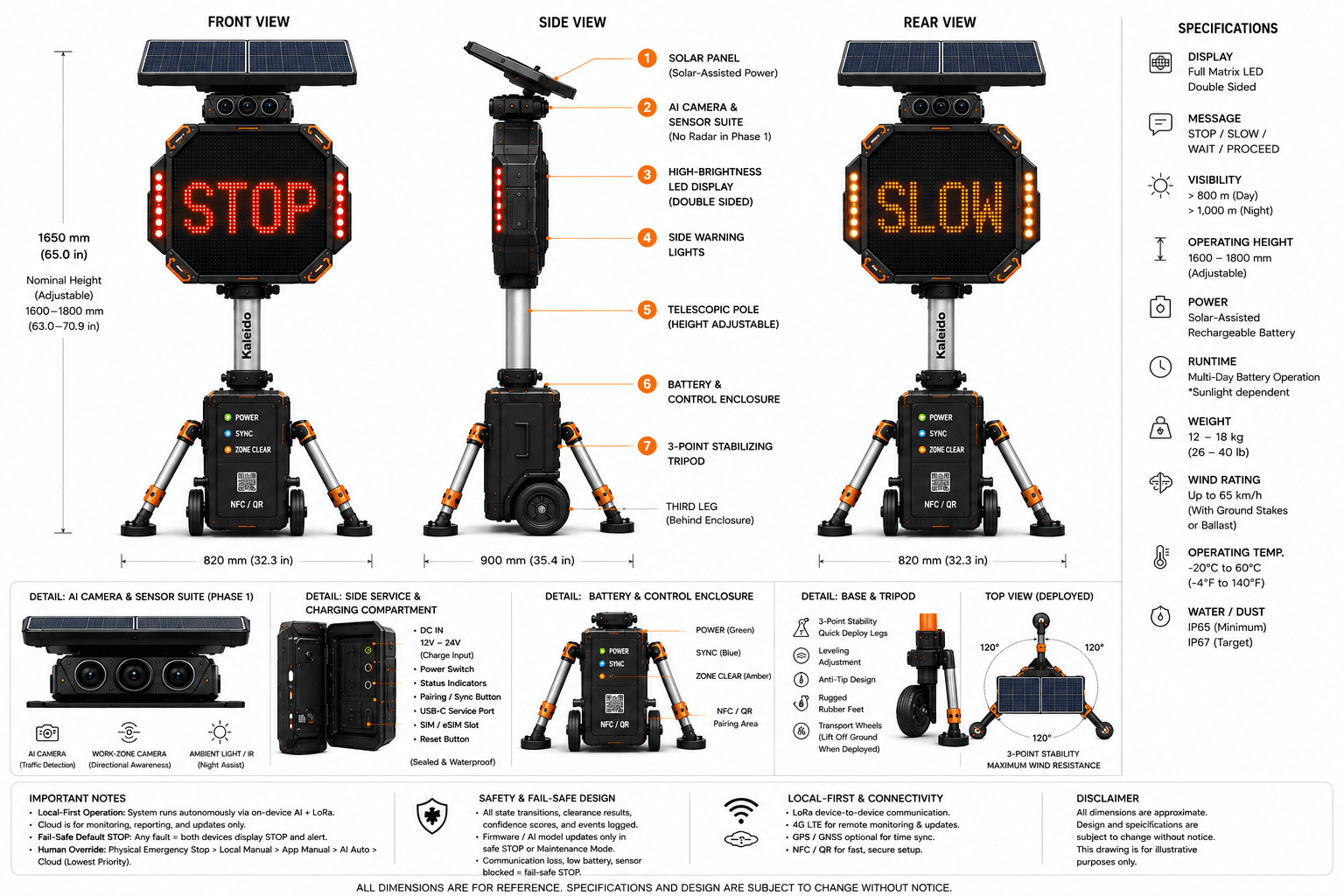

The final arrangement separates public-facing communication from protected service work. The sign head and side lights remain readable at a distance; the camera and solar plane sit above the traffic message; status and power controls live at the base; and the tripod opens below the unit's center of mass.

This architecture lets the product present a simple roadside message while exposing a clear maintenance and setup logic to the crew. It is a more disciplined alternative to hiding a complex system inside a generic black box.

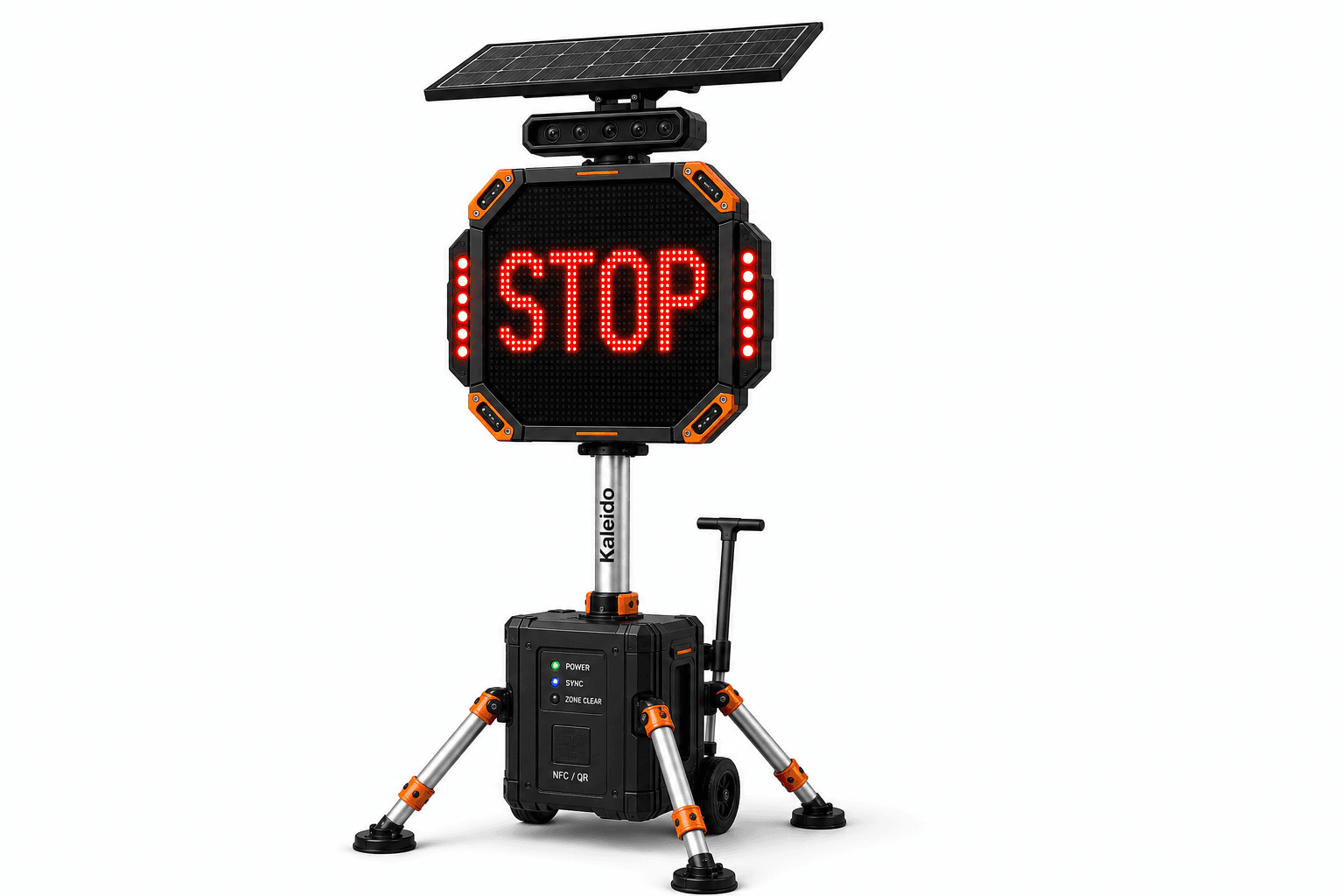

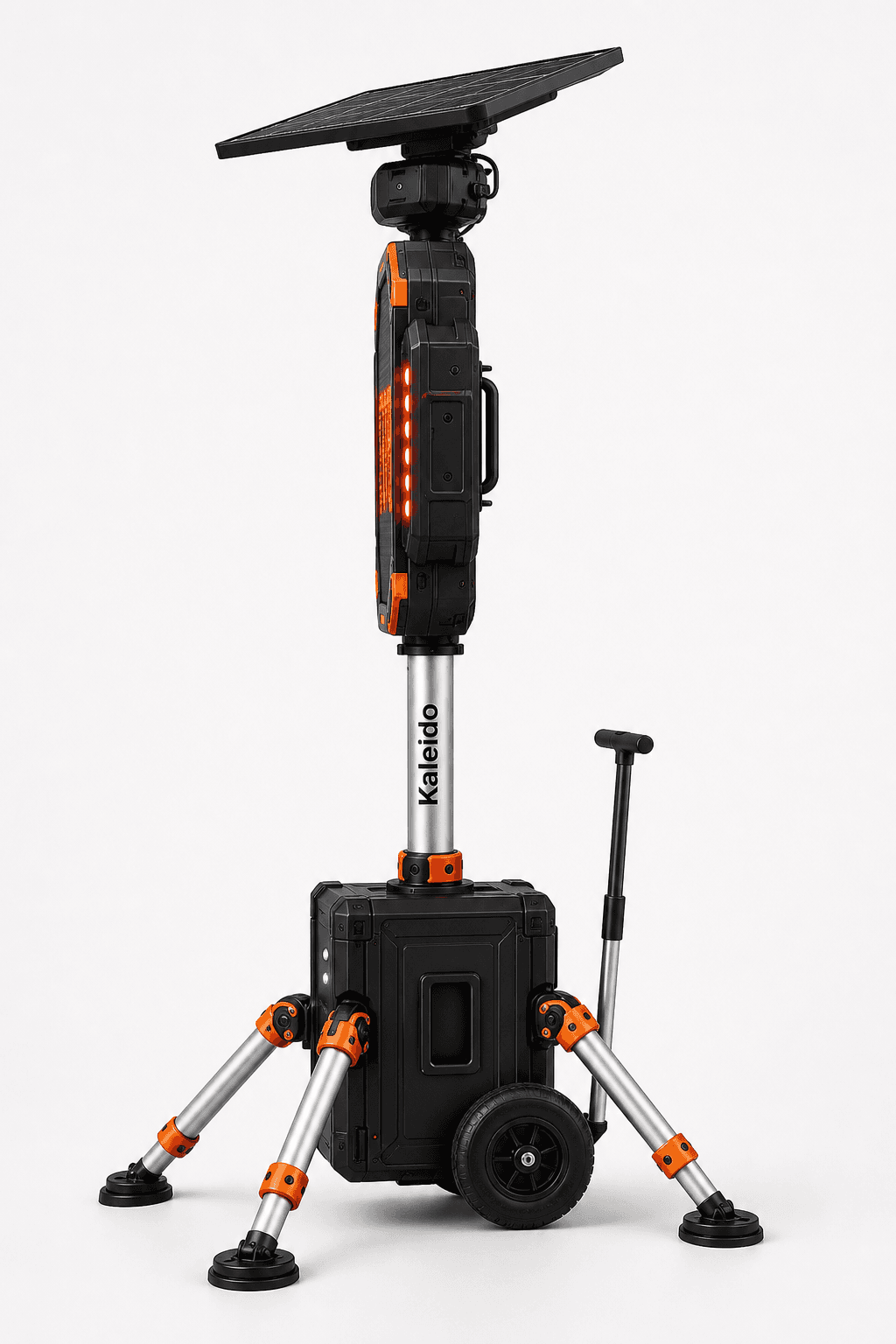

The production-direction render resolves the early questions into a restrained, rugged product language: a black enclosure for roadside contrast, an orange service and articulation layer, a clear vertical stack, and a base that signals both stability and mobility.

This is not a cosmetic final-render chapter. It is the point at which the design's roadside message, maintenance logic, power geometry, and transport posture become one coherent object.

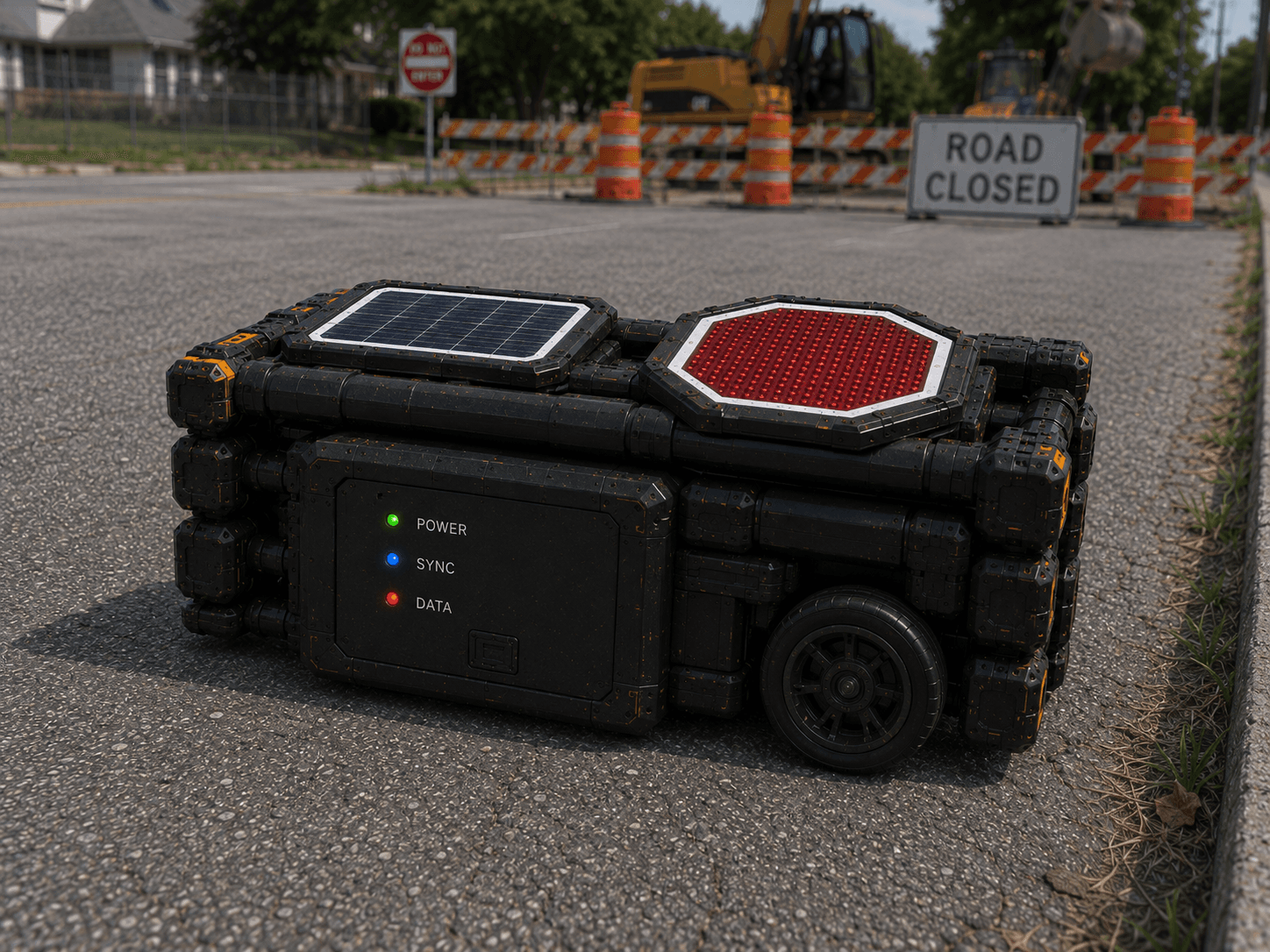

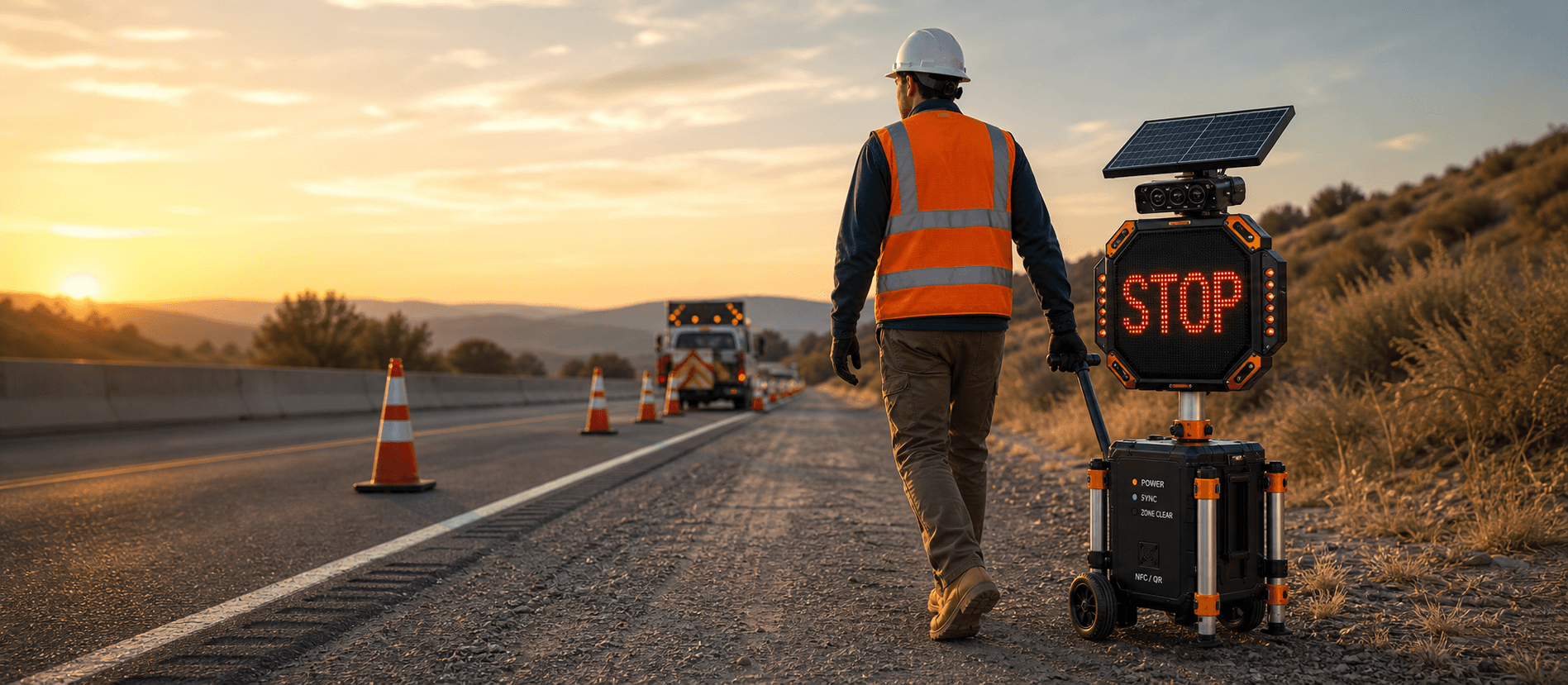

For a temporary work-zone product, the off-road condition is as consequential as the deployed condition. The display folds into a protected transport configuration; the mast, solar plane, and legs pack down; and the wheels plus pull handle make one-person movement an intentional part of the product architecture.

The sequence studies are not beauty shots. They identify the exact transition that needs further validation: how a crew lifts, opens, levels, aligns, pairs, and packs down the unit under real field constraints.

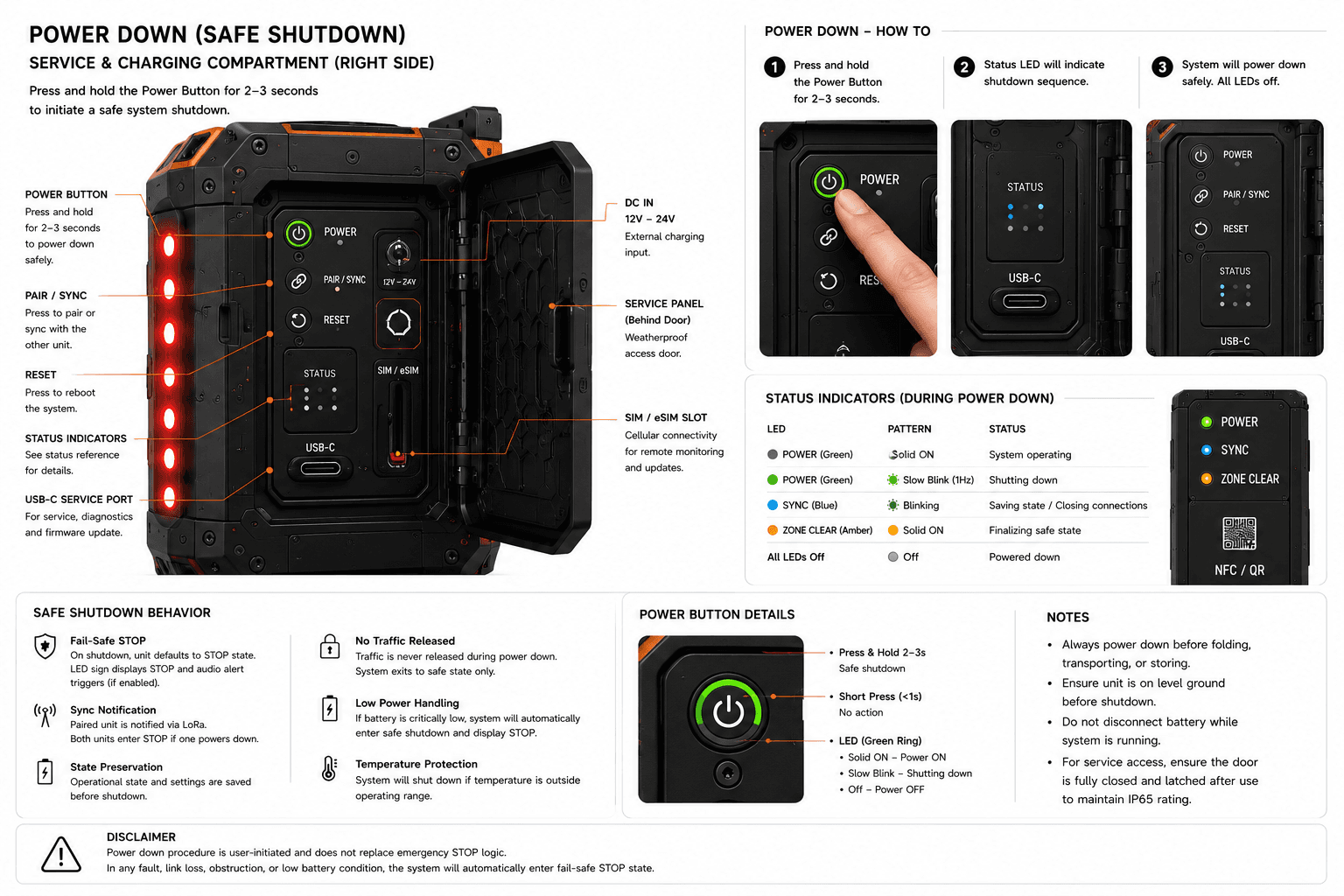

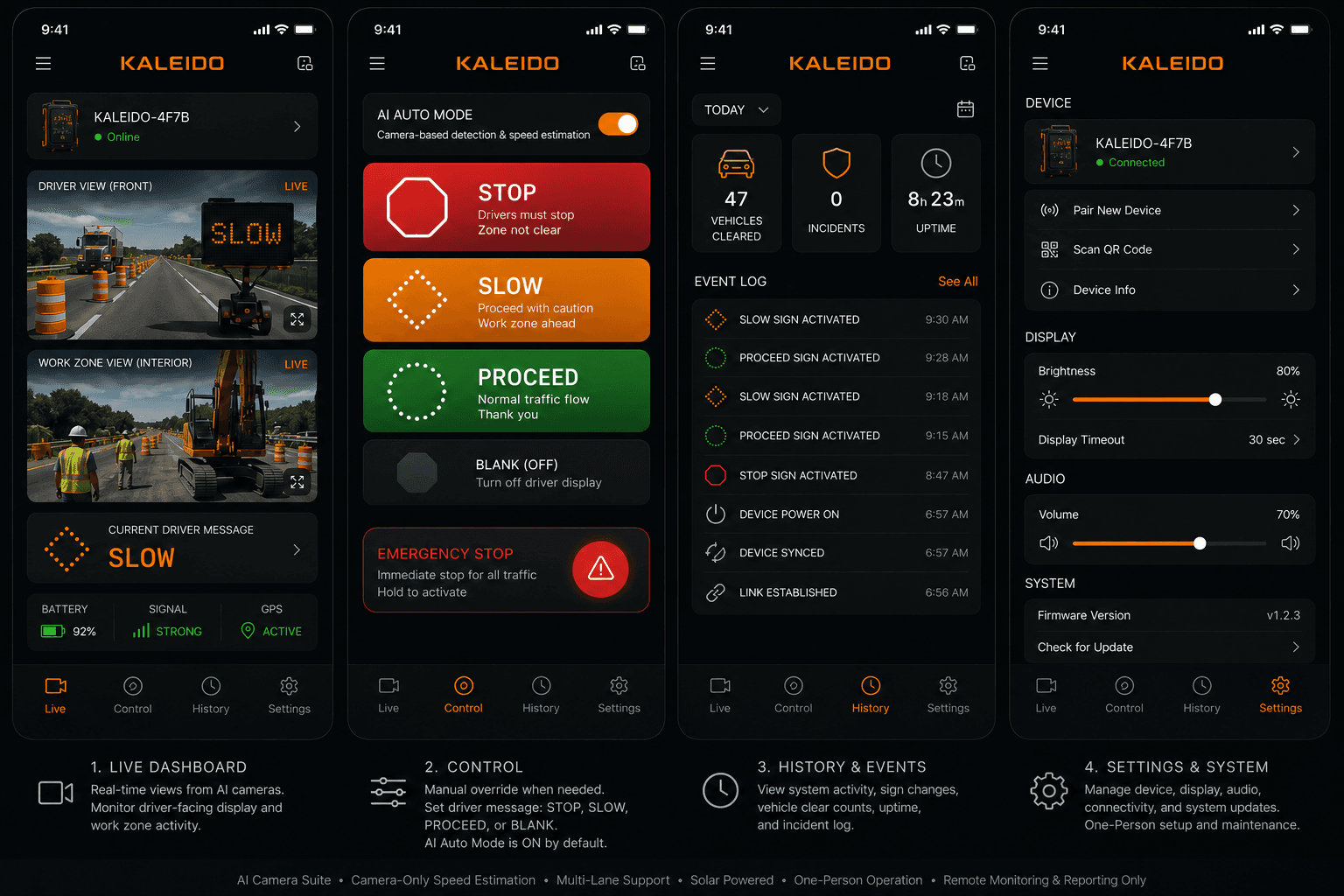

The roadside unit communicates power, synchronization, zone-clear status, and traffic instruction without requiring an app. The companion interface supports setup, health checks, manual override, logs, and supervised monitoring, but the essential operating state remains readable on the physical equipment.

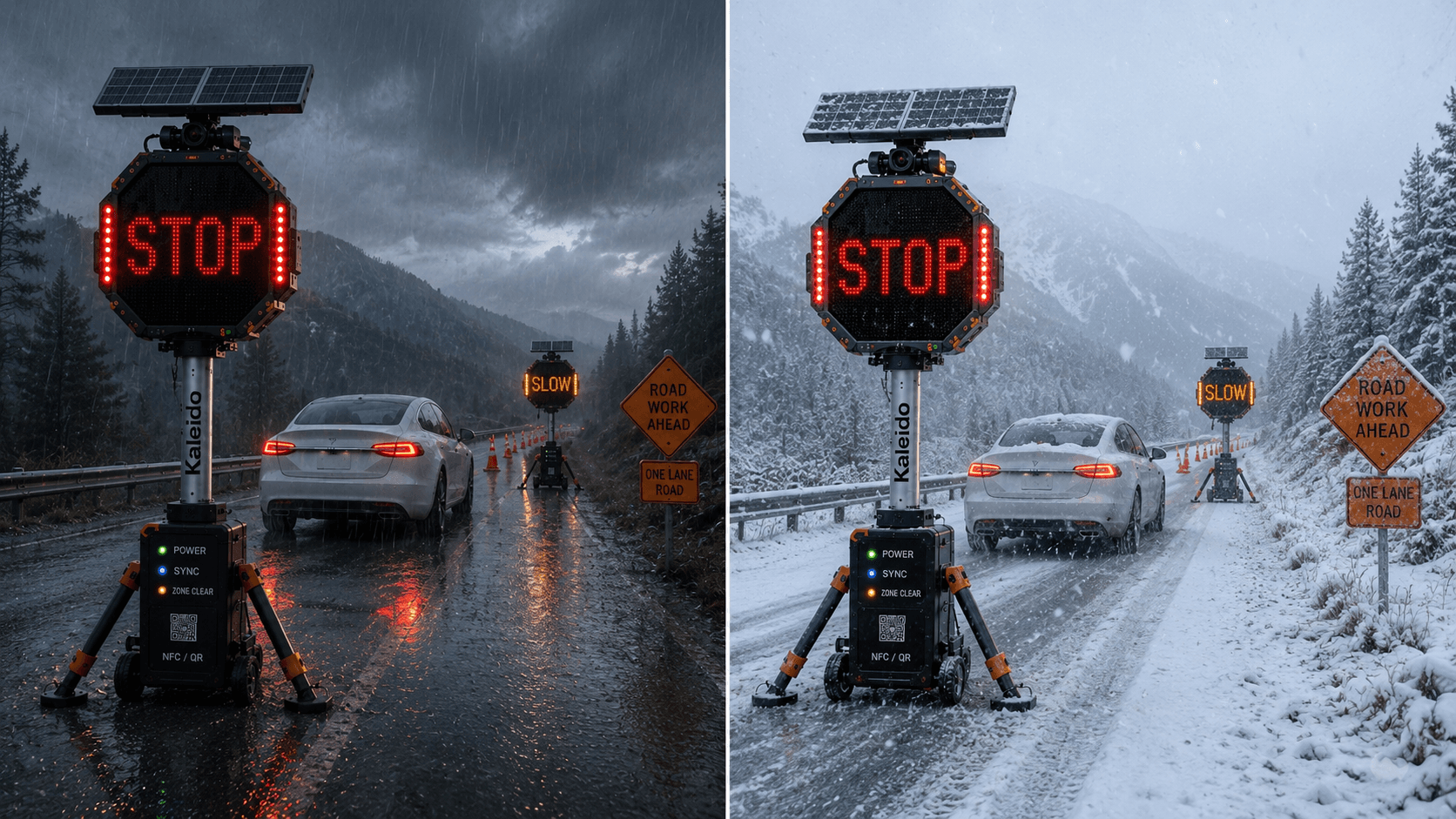

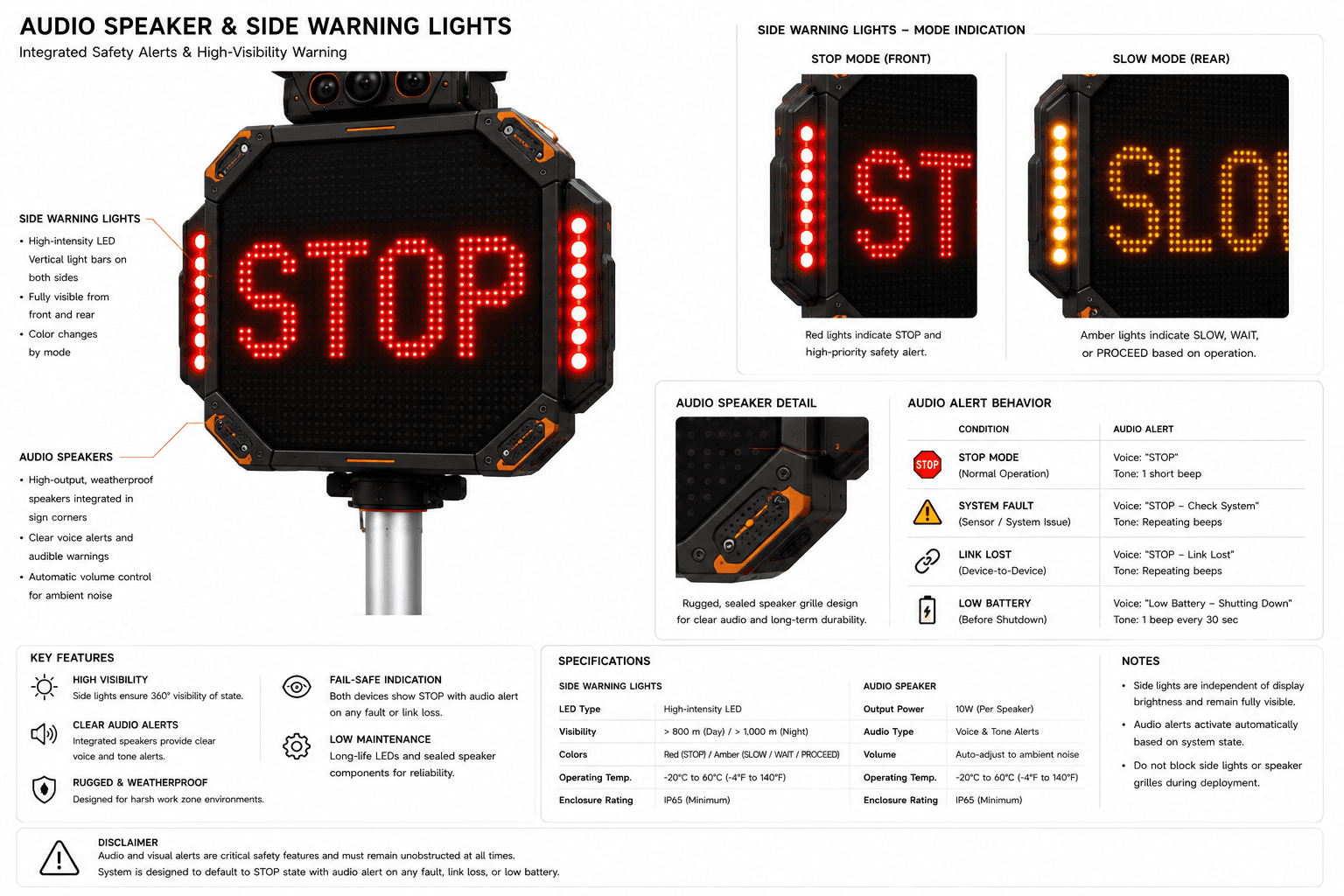

The visual language has redundancy by design. The central message board, side lights, and audible cues help approaching drivers and nearby crews recognize a stop condition or fault without treating a mobile screen as the source of truth.

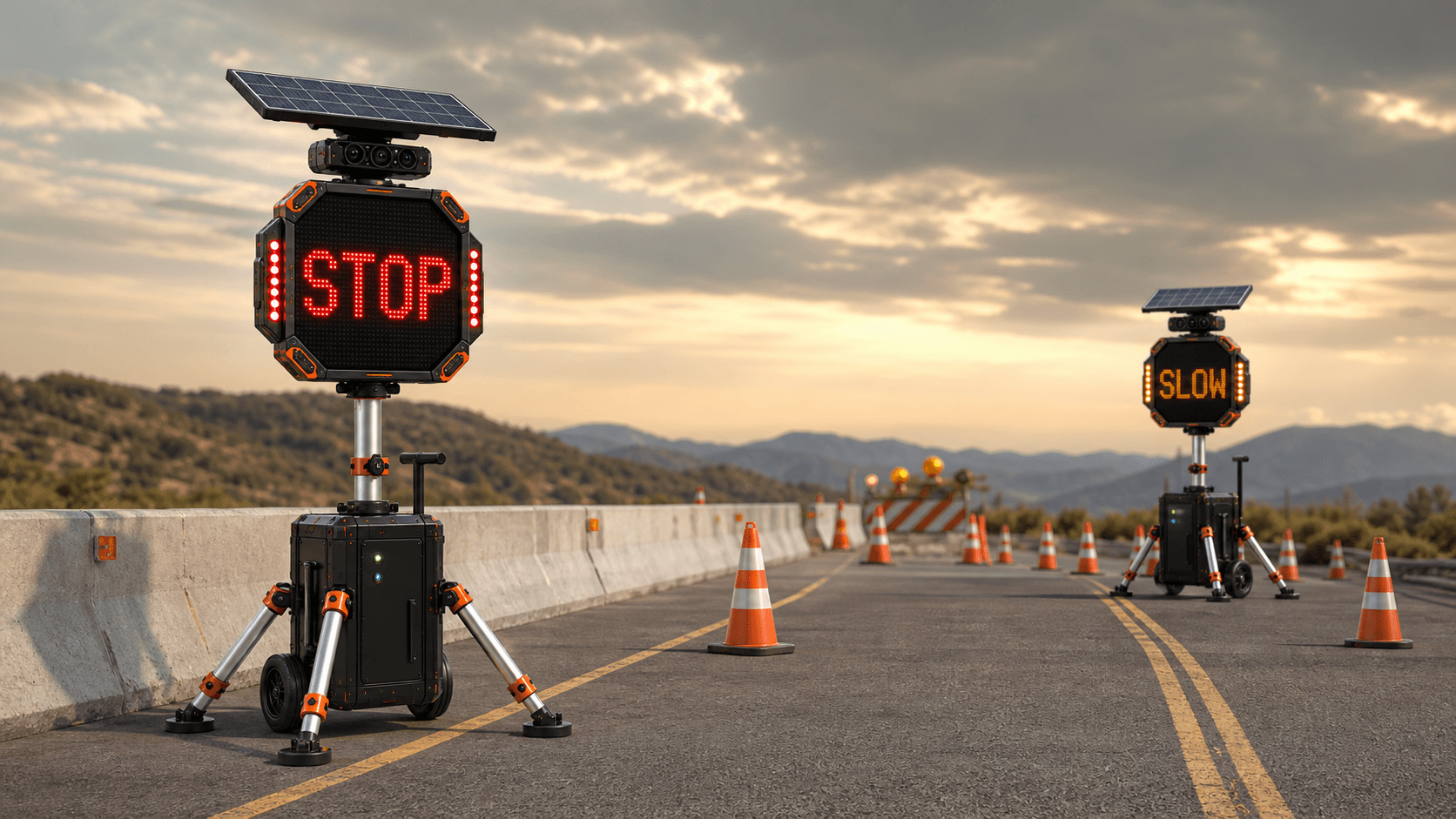

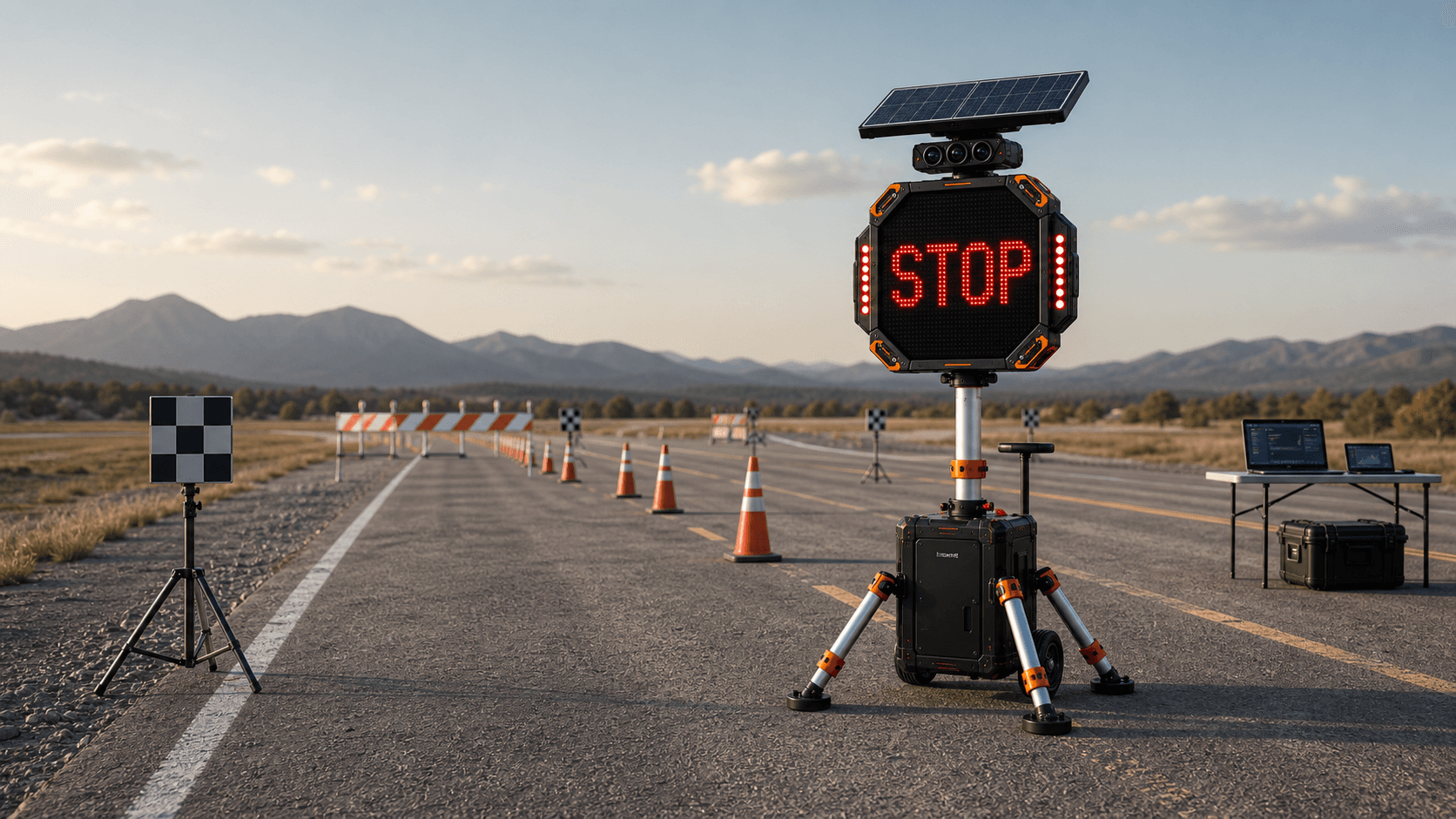

The validation plan starts in a controlled, low-speed, single-lane environment. It measures detection performance, false-clear events, communication timeouts, STOP fallback, display visibility, setup time, alignment errors, battery behavior, and operator recovery from faults.

Success is not a polished demo. It is a documented safety envelope, known failure modes, reproducible state transitions, and enough field evidence to decide whether a supervised pilot is responsible.
